Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testingfunction;
Strict process control and famous brand components to ensure high quality and reliability
Fit for harsh condition (T3), R134a refrigerant ;
Multiple self-protection design & visible monitoring interface , RS485 communication port (MODBUS-RTU protocol);
LED display, all the settings can changed at the field;
The heating function and the hydrogen function is optional;
Dry contact alarm output,NO/NC optional; Anti-theft design, withoutthe cowling.

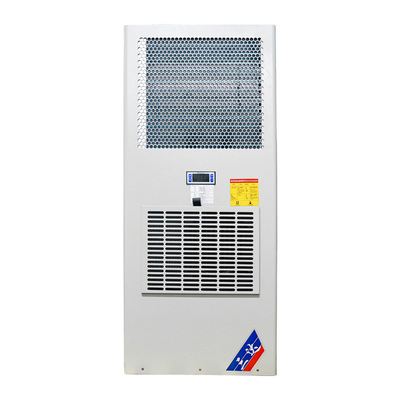

Model No. | SD 13.102 | Mounting Method | External Mounting |
Cooling Capacity | 1000W@L35/L35 | Power Consumption | 540W@L35/L35 |
Cooling Capacity | 660W@L35/L55 | Power Consumption | 650W@L35/L55 |
Internal Airflow | 450m³/h | Working temperature Range | -40℃- 55℃ |
Max Noise Level | 63dB(A) | IP Grade | IP54 |
Net Weight | 36Kg | Refrigerant | R134a |

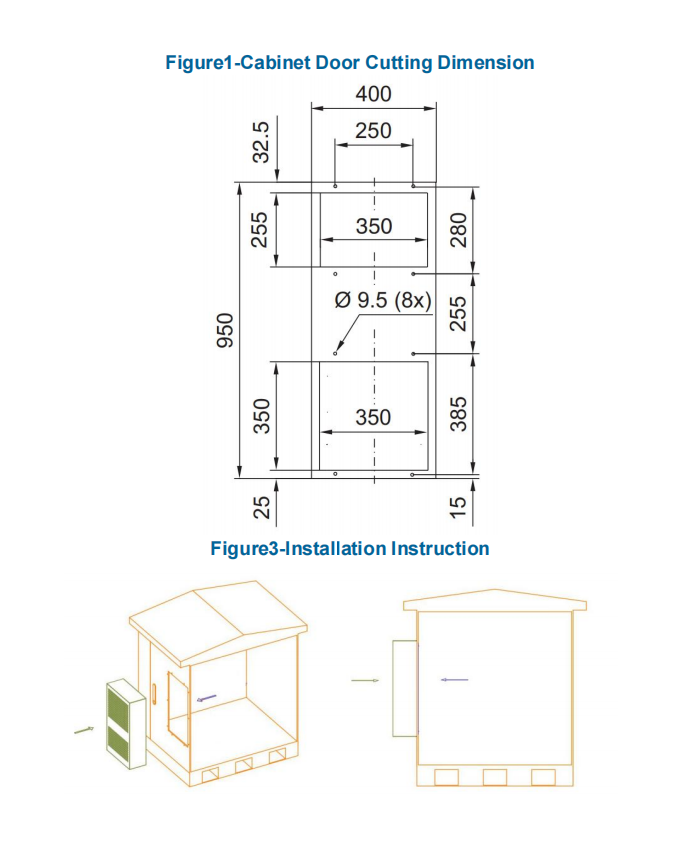

Dimensions(mm) | 950×400×200（HWD） | Power Supply | 220VAC 50Hz |
