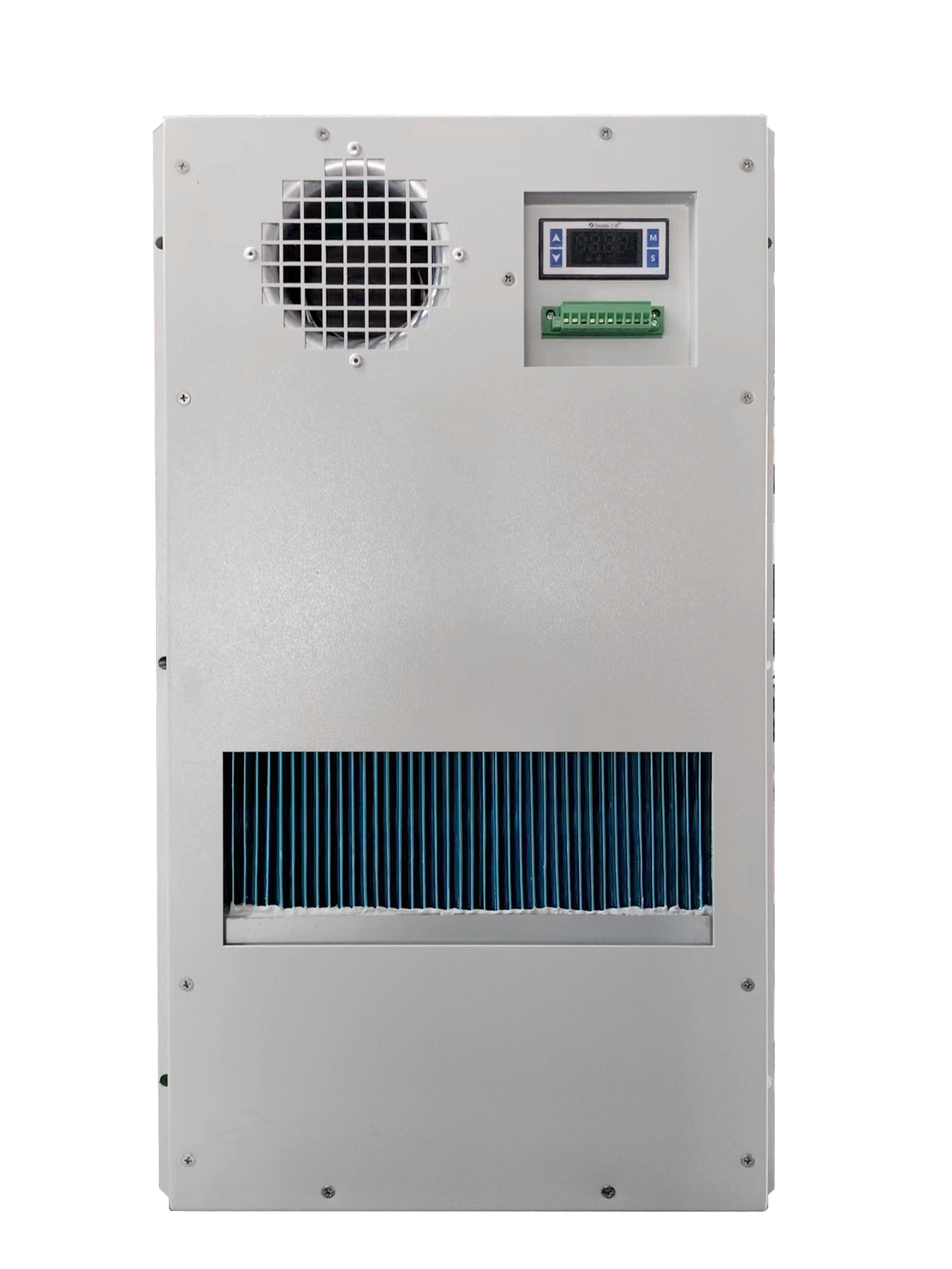

SDCE 050 /N/D/D

Parameters:

Model: SDCE 050 /N/D/D

Power supply: -48VDC±20%

Heat exchange efficiency: 50W/K

Power consumption: 60W

Internal circulation air volume: 350m³/h

Operating temperature range: -40℃~+55℃Maximum noise: 50-65dB(A)

IP level: IP55

Net weight: 15kg

Dimensions: 622x344x200 (mm,HxWxD)

Surface treatment: Outdoor type powder coating, standard color: RAL7035

Installation method: Side Mounting

Cooling capacity: 500W@L35/L35 320W@L35/L55

Installation method: Semi-embedded installation
